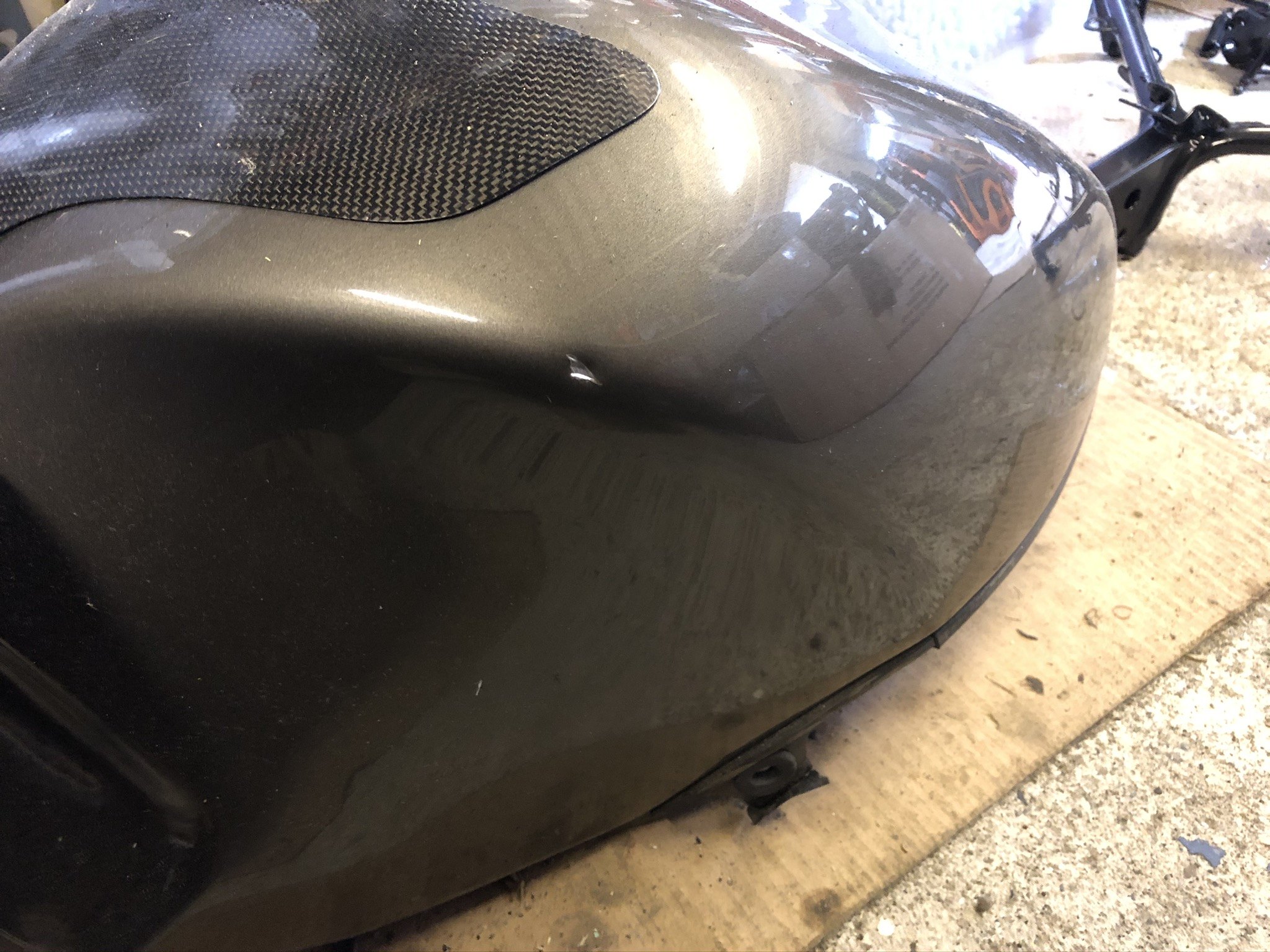

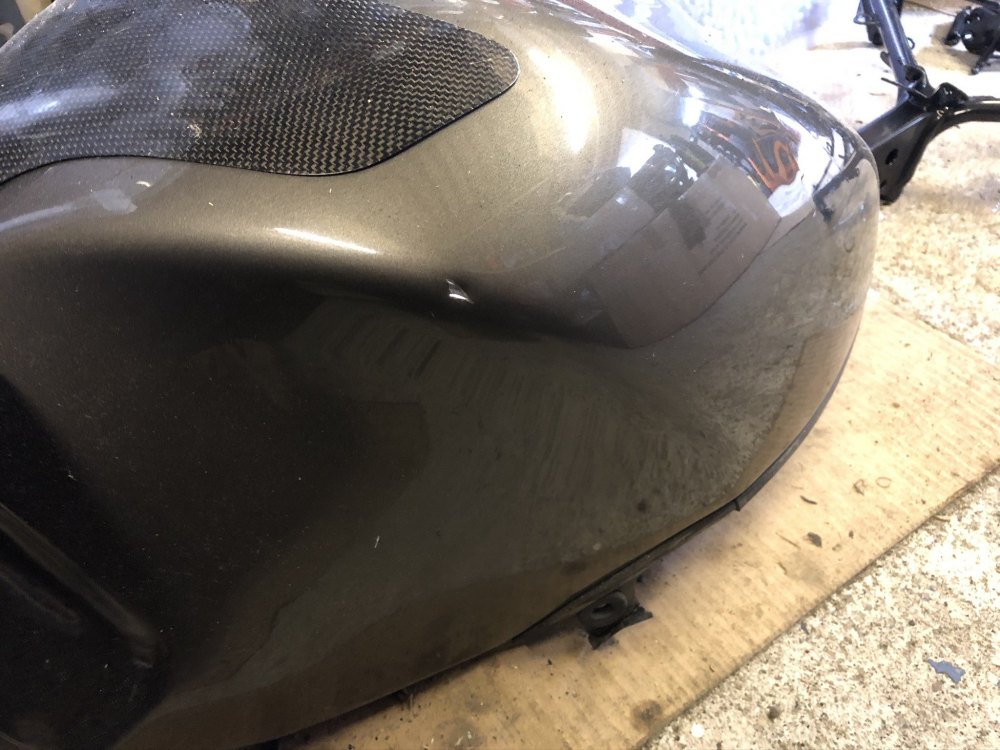

The tank could be worse but it's the combined annoyance I guess.  I'll put some pics up next week when I'm on the other computer.



So, the last couple of days have been a bit of a slower pace...



Rear subframe is now on, starting to look a bit more like a motorcycle now

2/3 calipers rebuilt, remember those annoyances I mentioned, one of the seals for the largest piston on one of the front calipers was undersized :(   Have contacted company but need to measure offending piston to confirm sizing tomorrow.  New stainless steel pistons are in.

New electrosport stator has arrived and been fitted, it's an injection model version so should kick out plenty of juice for the planned accessory fusebox.

Shindengen R/R has been ordered but likely to be another week at least due to it coming from the USA

Replacement fork legs have arrived and apart from a couple of minor pits in the chrome look pretty good so they're going on.  Will remove and rebuild if needed, have kits and oil

Headstock bearings replaced with All-Balls racing taper bearings, surprisingly straightforward to do, nice smooth lock to lock steering now.  Was very notch before.

Tail section under plastic had a good clean before refitting, looks nice now.

Disks I bought last year turned out to be for the injection model so don't fit, seller not interested as I bought them nearly a year ago. Ah well, eBay here I come.

Radiator bottom bracket screw sheared when removing bracket for clean / paint, what's another sheared bolt between friends eh?



I know I've extolled the virtues of the Abba skyline before, but I really do think it's an excellent piece of kit, it's made this whole project far simpler than it would otherwise have been.  I know many would rather use a lifting table but for me the skylift is definitely more useable, it also takes up very little room in my already limited garage space.



Hard to believe but my list of jobs at last appears to be shrinking, there have been some setbacks along the way, and additional expenses as documented but all in all I'm starting to be grateful for the chance to get to know this beastie better.  I'm maybe not the most accomplished motorcycle mechanic but this has been a major step forward for me, I've done a fair bit with cars so I guess that helps.  I'm very glad I took the decision to do this rather than pay someone a fortune to do it for me.  I've taken on several jobs that I would have been nervous of and found they're actually not as scary as I thought.







Share this post


Link to post
Share on other sites

Nice job but All Balls bearing kits are of criminal quality . They use the ultra cheap Chinese bearings in their kits.

Been there, never again.

Share this post


Link to post
Share on other sites
On 7/24/2020 at 2:55 PM, JaBr said:

New electrosport stator has arrived and been fitted, it's an injection model version so should kick out plenty of juice for the planned accessory fusebox.

Hopefully you know that this presents potential problems.

Share this post


Link to post
Share on other sites
7 hours ago, superhawk996 said:

Hopefully you know that this presents potential problems.

I am not aware, what is the potential?



...oh shit, what did I do there?

Share this post


Link to post
Share on other sites

Ok, bad accidental puns aside....



Scholarly articles on motorcycle stator over-current for $100 please, Alex?



https://advrider.com/f/threads/stators-demystified.189734/



I think my "fried" stator is still on a shelf in my garage....



Share this post


Link to post
Share on other sites
1 hour ago, XXitanium said:

I am not aware, what is the potential?



...oh shit, what did I do there?

More power being shunted off by the regulator making it run hotter, unless extra accessories are always being used, or it has a series regulator.

  • Upvote 1

Share this post


Link to post
Share on other sites

Thanks

Share this post


Link to post
Share on other sites
19 hours ago, superhawk996 said:

More power being shunted off by the regulator making it run hotter, unless extra accessories are always being used, or it has a series regulator.



I have the Shindengen Mosfet FH020AA on order that should take care of the issue I believe, once I found the stator needed changing it was logical to do both and remove the weak link that is the standard bumwarmer, aka R/R :)



https://www.ebay.co.uk/itm/UNIVERSAL-MOTORCYCLE-REGULATOR-UPGRADE-KIT-SHINDENGEN-MOSFET-FH020AA/133449244776





Share this post


Link to post
Share on other sites
On 7/21/2020 at 10:04 PM, SwampNut said:

Damn.  How bad is the tank?



Have a dram...



So just a small chunk, but enough to annoy me




Share this post


Link to post
Share on other sites
45 minutes ago, JaBr said:



This seems strange, it is in the United States but they will not ship to the United States.




Doesn't post to United States | See details
Item location:
Joplin, Missouri, United States

Share this post


Link to post
Share on other sites

So I thought I'd give an update of what remains, in no particular order...



1. Fit new Mosfet R/R

2. Fit new accessory fusebox

3. Remove sheared bolt in block

4. Tighten rear subframe

5. Refit calipers and mounting pieces / bleed brakes / fit fancy CBR1100xx fluid lid to brake master cylinder

6. Fit replacement forks

7. Fit wheels / chain / sprockets

8. Refit cans and footpegs

9. Repair RH panel bracket where it fits to v-panel

10. Fit subair filter

11. Oil and filter change

12. Refit body panels

13. Refit radiator and fan, fit radiator guard, fill with coolant.

14. Refit upper cowl stay and clocks

15. More engine cleaning

16. Cameras

17. Buy and fit front disks



Still a way to go, but better than a week ago :)

Share this post


Link to post
Share on other sites
24 minutes ago, blackhawkxx said:



This seems strange, it is in the United States but they will not ship to the United States.




Doesn't post to United States | See details
Item location:
Joplin, Missouri, United States

As I understand it, it's this guy



Roadstercycle

Share this post


Link to post
Share on other sites

So I had some powder coating done on some brake fittings.

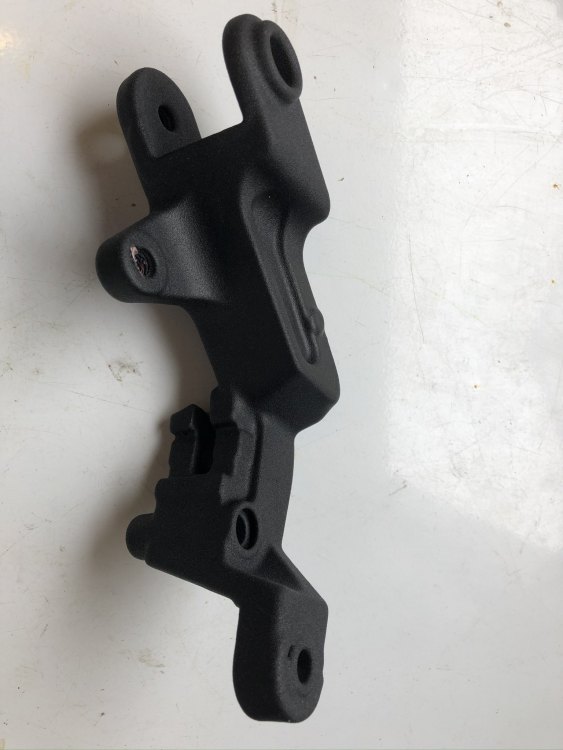

These are a textured matt black, all three caliper mounts done in this.

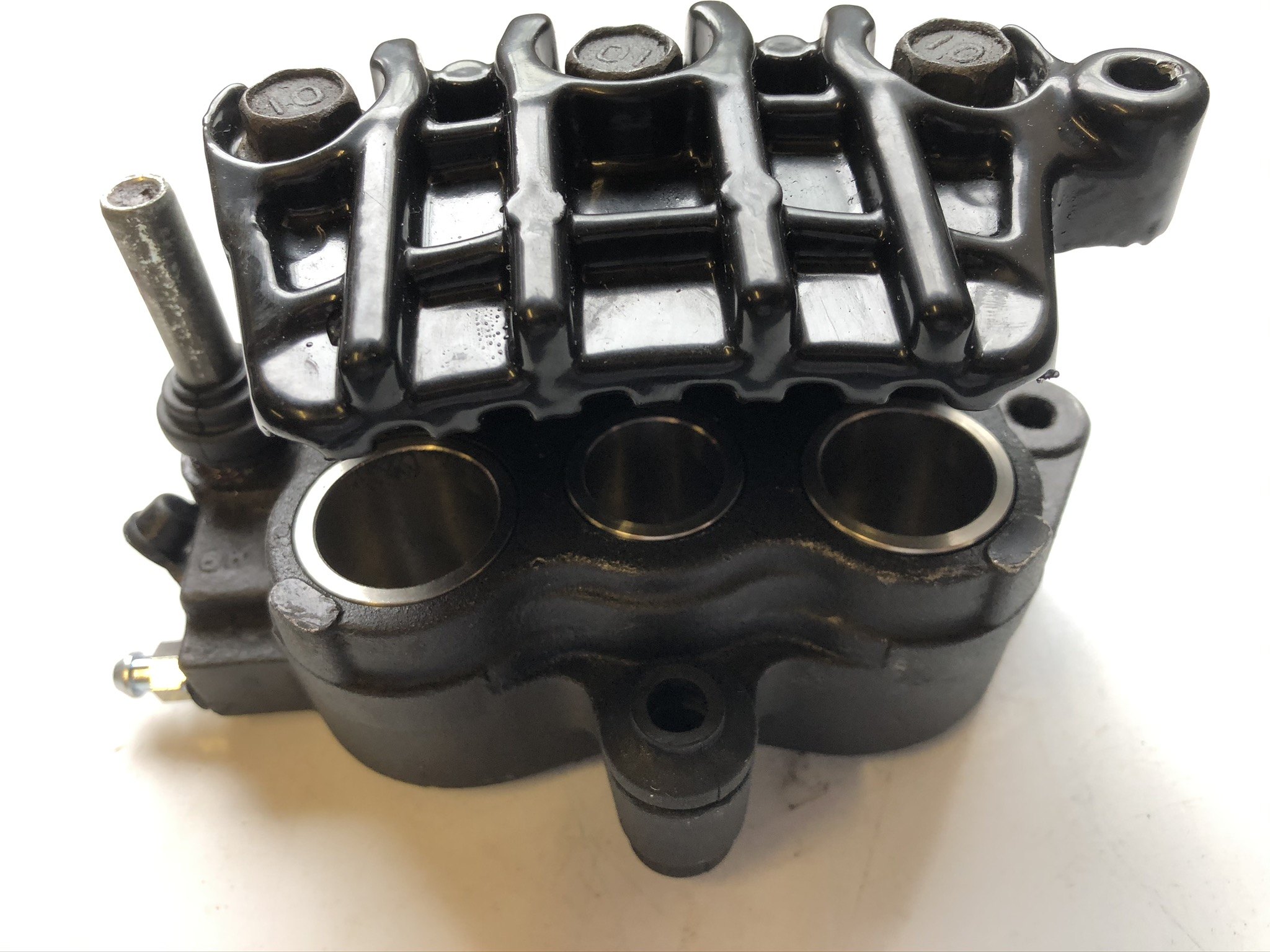

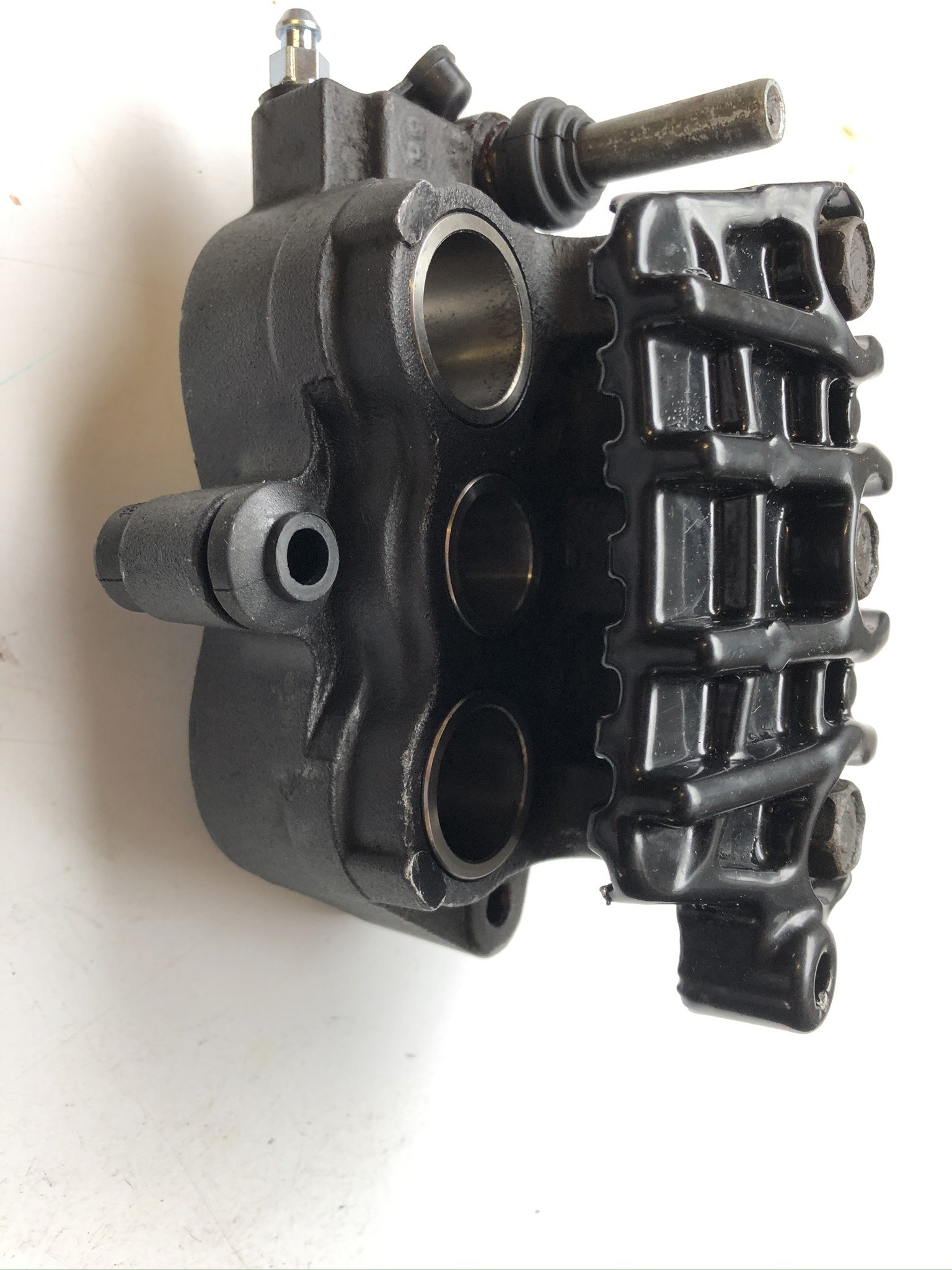

Next up, the flat half of the calipers




And finally another view, showing the stainless steel pistons I have installed


  • Like 1

Share this post


Link to post
Share on other sites

A few more pics from the work so far...

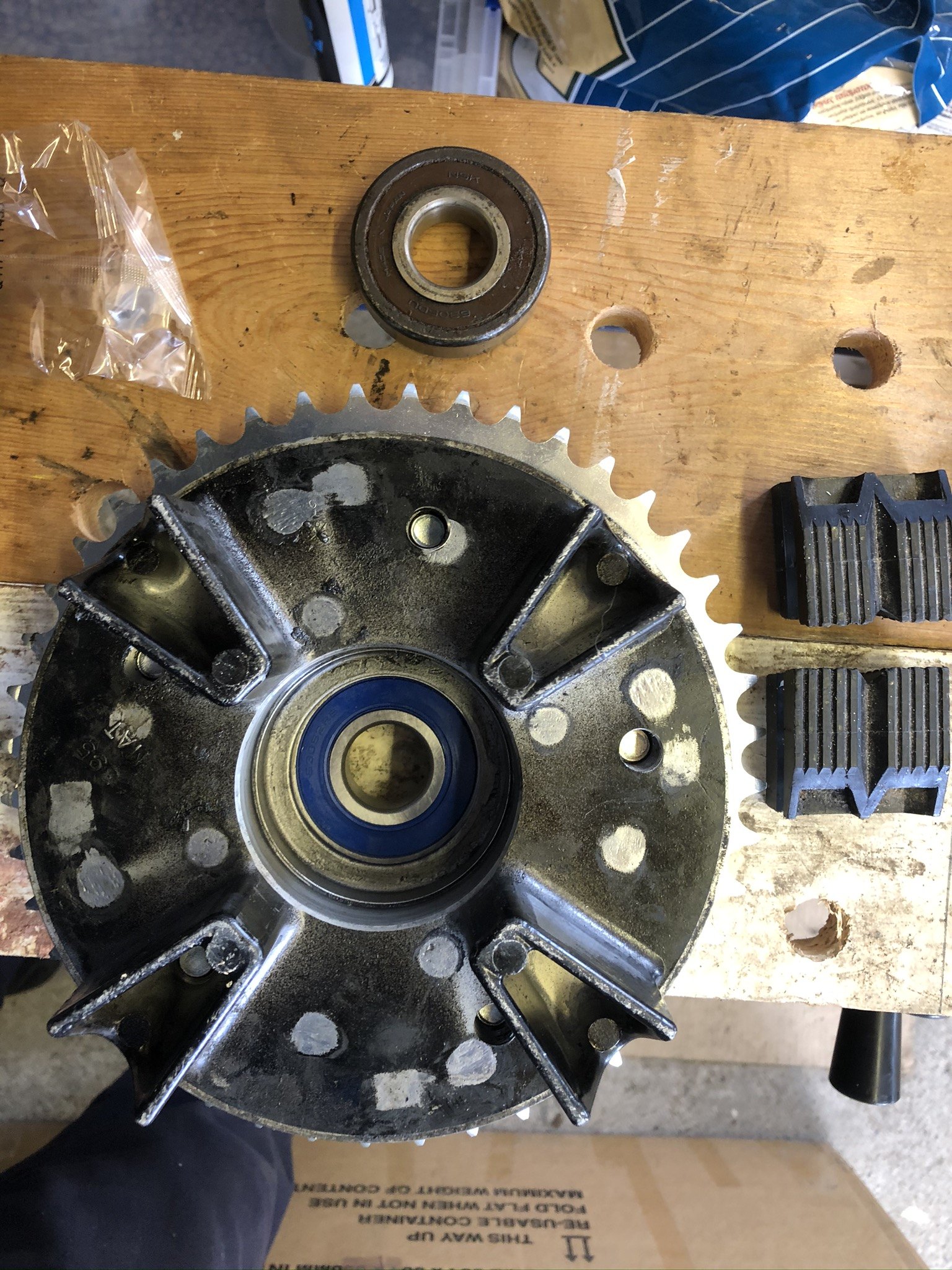

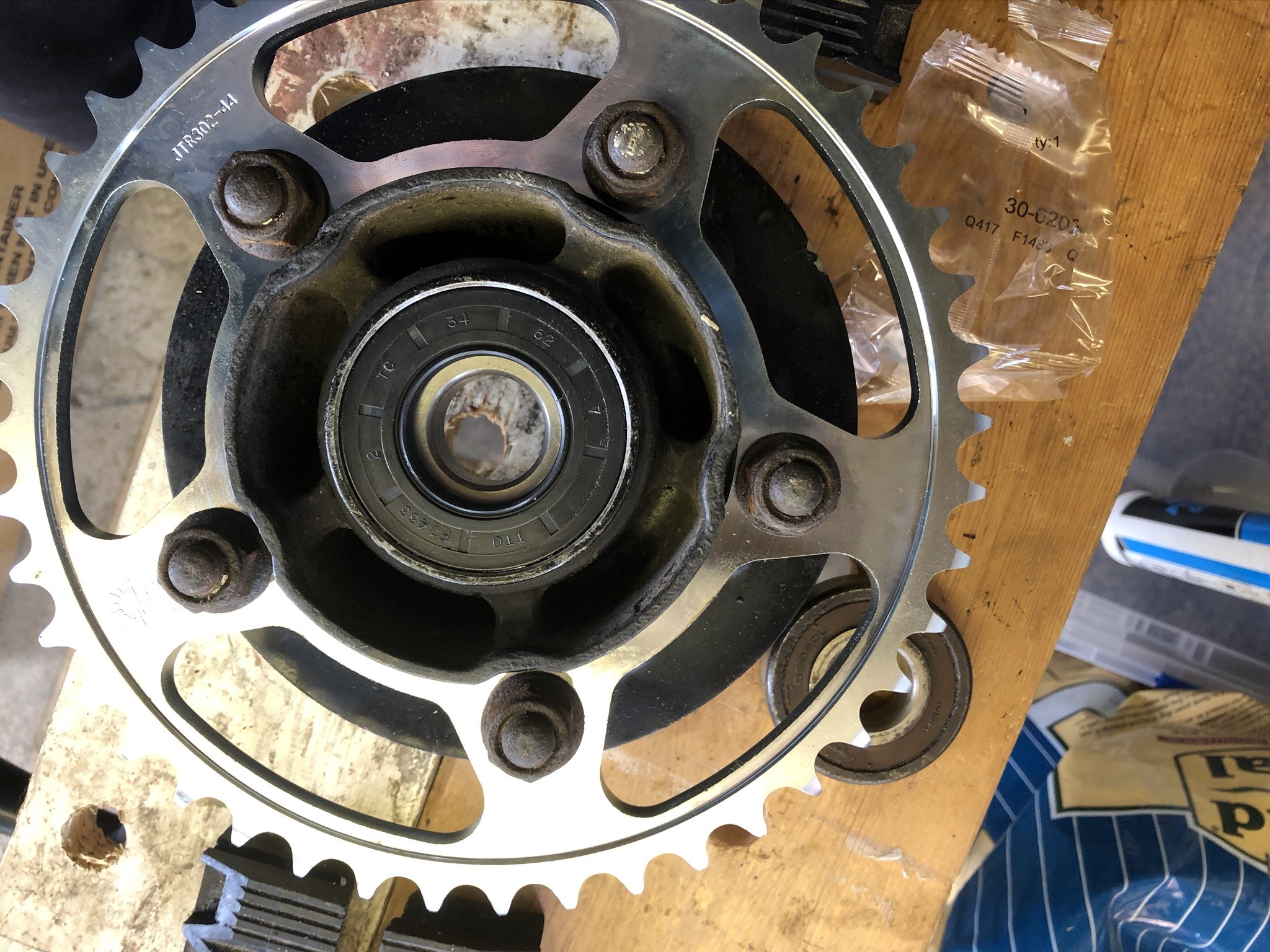

Front and rear wheel bearings done, this is the rear sprocket carrier bearing and new seal

IMG_4700.thumb.JPEG.c49c1ffbcfed3b28e79ccdda1e31faba.JPEGIMG_4701.thumb.JPEG.112d0c159fc2ee7de758f145b2fa0d98.JPEG

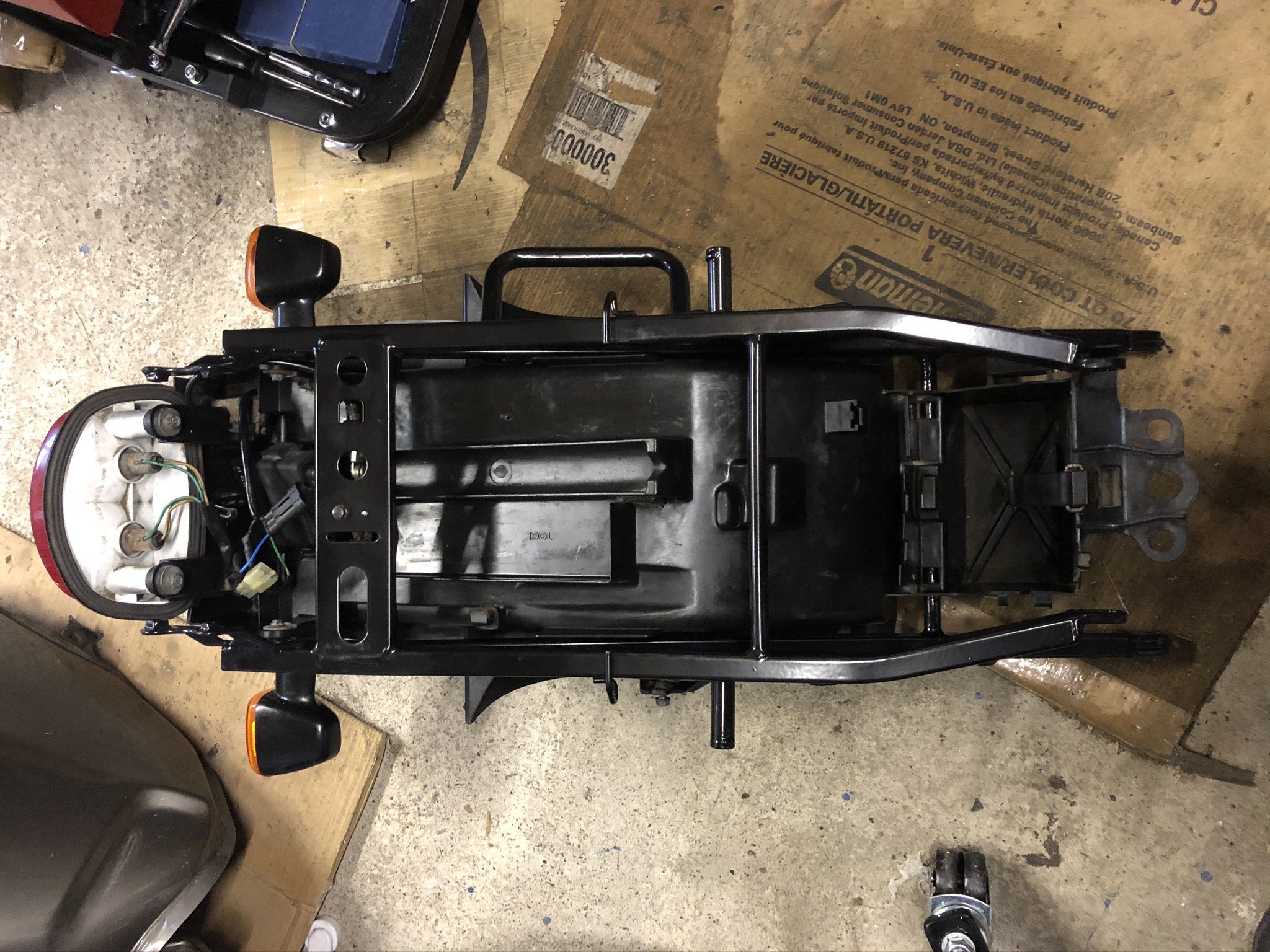

Newly powder coated rear subframe with cleaned plastics

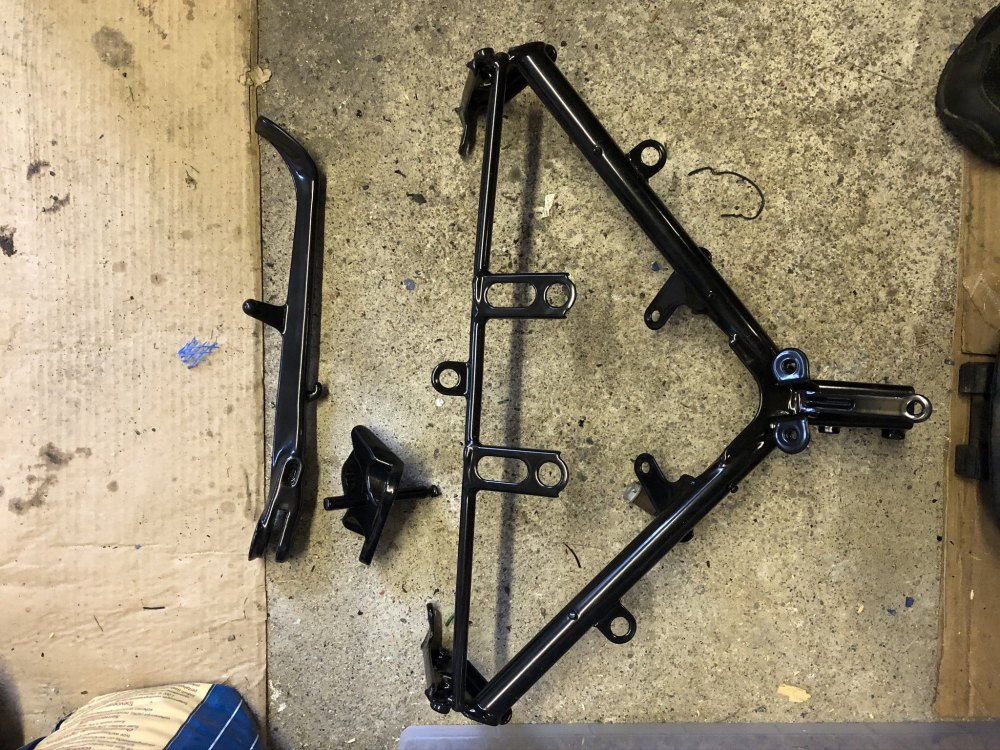

Powder coated sidestand and upper cowl stay

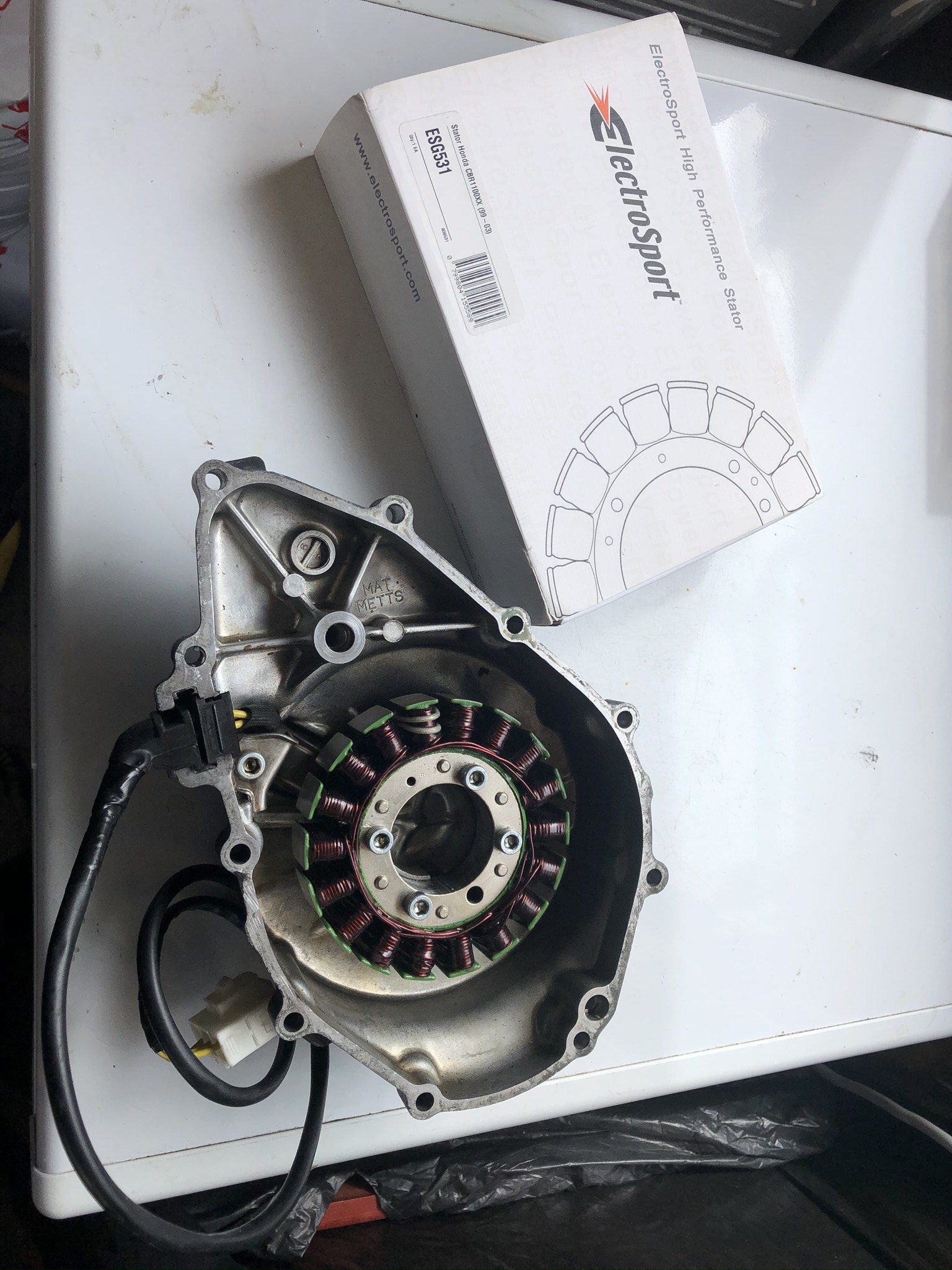

Electrosport stator
